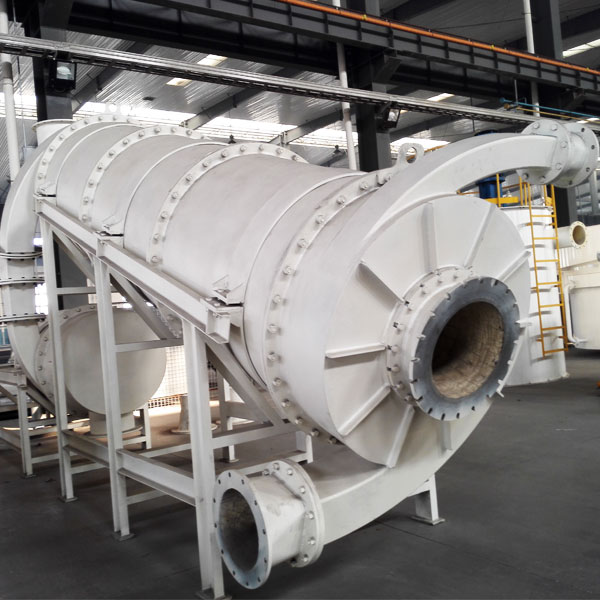

Gravity-fed three-product dense-medium cyclone

2017-09-12 15:32:51

Description

\

Characteristicsofthe gravity-fed,three-product,dense-mediumcyclone

raw coal is provided by its own weight, and medium is provided by a pump; with a single medium, sorting out the fine coal, medium coal and gangue at one time. The process system is simple and reliable.

It ensures the quality of clean coal and middle coal, gangue using less coal.

The feeding capacity is high, the processing capacity is large, and the waste discharge capacity is large, and it can be used for materials with large variationof gangue content.;

Additionally, it requires less crushing, and produces less secondary slime. It is constructed of high performance wear resistant materials. The service life is long and the separation accuracy is high.

The separation density of the first and second stages can be adjusted continuously on line.

Application: 1. high-sulphur coal. 2. feed size 0.1-100mm.


\

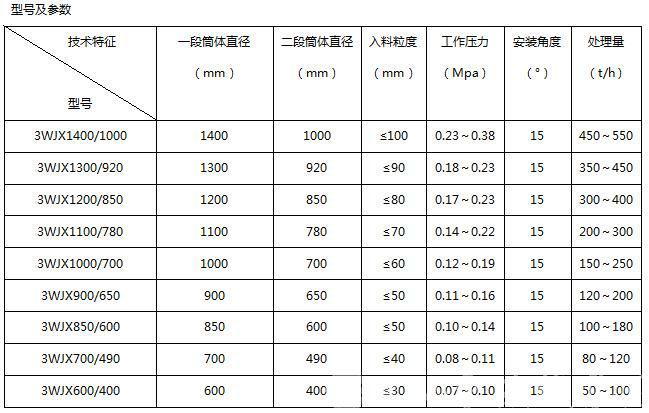

技术特征 parameter 一段筒体直径 diameter of primary cylinder

二段筒体直径 diameter of secondary cylinder 入料粒度 feed size 工作压力working pressure 安装角度 assembly angle 处理量 capacity 型号 type
